Real-Time, Single-Run CT System Provides Selective Perforating and Activation

A coiled-tubing selective perforating and activation system that transmits critical downhole data and measurements in real time is enabling well interventions that previously could not have been executed.

Fig. 1—The real-time selective perforating and activation system minimizes downtime, risk, and cost with fewer runs for single perforation attempts.
Source: Schlumberger.

Deeper boreholes and longer, more deviated laterals are driving an evolution in well intervention operations, opening opportunities for the industry to develop challenging wells in new frontiers as intervention capability expands to support the most complex wells and completions.

From a service company standpoint, this phenomenon has challenged the industry to make continued improvements in the delivery of well intervention services and technologies to meet the needs of customers and do the job right, the first time. Development of advanced equipment, such as coiled tubing (CT) and other downhole tools that transmit critical data and measurements in real time, is helping operators move into these new arenas and produce from wells that once would have been inaccessible to intervention methods.

By far the most used and exposed piece of equipment in the oil field, CT has been a critical tool in moving well intervention services forward. The need for accurate, real-time data in CT operations will continue to be a key driver for further innovation. Downhole tools that can provide real-time information on depth, pressure, and temperature and depth correlation are critically important and represent a significant change from the requirements of 10 or 20 years ago in shallow, vertical wells, where a 0.1% discrepancy was acceptable.

For example, intervention in an offshore well of more than 20,000 ft requires better resolution and greater accuracy in the critical parameters, such as depth, pressure, and the specific activity of the CT than intervention in shorter wells in less challenging settings.

In this situation, a stimulation treatment to increase the productivity of a well with lower drawdowns on the reservoir can take 2 or more days to run in and out of the hole. Traditionally, operators have used surface measurements to infer the depth from length measurements, with little information and control over what the CT is doing downhole. In a difficult horizontal well, reliance on those assumptions can very easily lead to discrepancies in measurements and inaccurate decision making.

Schlumberger made a conscious decision more than 10 years ago to focus on developing high-tech sensors that provide real-time downhole measurements for greater accuracy. Today, tools that deliver the capability to digitally operate key well intervention services and equipment are aiding rig crews in conducting efficient, safer well interventions.

Optimizing the performance of existing wells is a practical choice that reduces the costs and risks associated with well intervention. Innovative CT technologies offer several key benefits, including a reduced footprint, accurate measurements of bottomhole pressures and temperatures, proper depth correlation, and precise load measurements in a unique, robust package for harsh and complex environments. These features allow operators to eliminate guesswork and make educated decisions as the job progresses, respond immediately, and adjust parameters as conditions change.

New CT System Advantages

Toward that end, an innovative method for selective perforating and plug-­setting with CT provides several important advantages, including the ability to accurately correlate depth between each detonation using fiber-optic telemetry to transmit signals.

The Schlumberger ACTive OptiFIRE CT real-time selective perforating and activation system is able to reach target depth safely, efficiently, and cost-effectively in a single CT run, a capability previously unavailable.

The tool’s accessibility to the targeted area is equal to that of a wireline tractor but without the need for a wireline crew at the wellsite. Thus, the use of the system minimizes environmental impact and reduces time and rig costs. The tool accesses the zone, positions the perforating guns, fires, and confirms detonation in one run (Fig. 1 above).

Especially suited for high-flow-rate wells, sub-hydrostatic wells, and un­stable formations, the CT real-time selective perforating and activation system is part of the platform of live CT services, including depth correlation, real-time pressure and temperature monitoring, and accelerometer data obtained by means of built-in sensors.

The use of fiber-optic telemetry to transmit signals eliminates the need to pump fluids downhole to initiate detonation, enabling operators to maintain underbalanced conditions to reduce formation damage while perforating and avoid displacing fractures when running plug-setting tools. The tool does not require a ball-drop or pressure-pulse mechanism to detonate, and can be used with a wide range of perforating guns.

The system selectively fires multiple guns for up to 10 zones in a single run, at different depths, overcoming conventional CT perforation methods that often require multiple runs, result in operating restrictions caused by the limitations of perforating heads, and compromise safety in confirming detonation. Guns can be fired on demand, and each gun is fired separately for greater control of the perforation operation.

The system is armed after it is run in the hole and programmed using wireline procedures through a surface system in the CT cabin. The battery-activated guns are fired from the bottom up. Continuous real-time feedback on the firing operation and an electronic safety key and pin that reduces risk while perforating enhance safety. Plug-setting is achieved by sending a command to the setting tool.

Maintaining Underbalance

The CT real-time selective perforating and activation system has been deployed globally, including in Mexico, the Middle East, Malaysia, and Norway. To prevent deferral of production and remove formation damage in a brownfield, Mexico operator Pemex selected the system to perforate two new intervals and reperforate a critical production zone on a live well in underbalanced conditions.

Schlumberger deployed the system to accurately place the perforating guns and activate the charges without a ball-drop or pressure-pulse system. Data from the casing collar locator (CCL) and from pressure, temperature, and accelerometer readings safely confirmed the detonation in real time.

The operation was carried out in record time and increased production by 18%. The system reduced perforating detonation time by 75%. Pemex also significantly reduced health, safety, and environmental risk by eliminating the need to pump fluid for detonation and avoiding the hydrostatic loading of the well (Fig. 2).

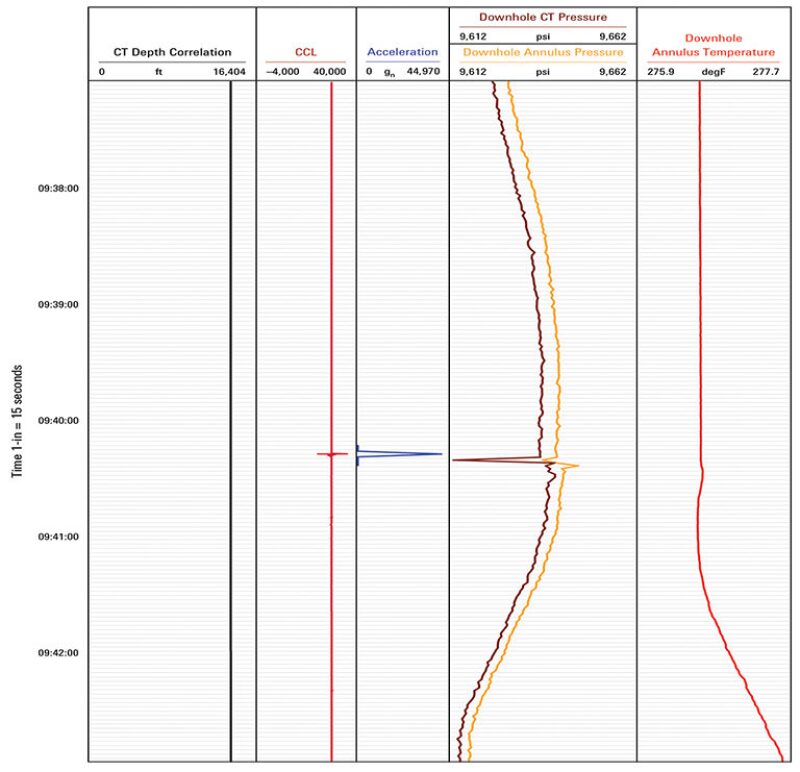

Fig. 2—Real-time confirmation of downhole detonation using the response of (leftward from second column) the casing collar locator (CCL), accelerometer, pressure, and temperature data. Source: Schlumberger.


A Middle East operator successfully deployed the CT real-time selective perforating and activation system for a field test on an unconventional oil well. After seeing positive results, the customer executed a subsequent, more complex job using the tool.

Another operator in the region chose the single-run system for a 6,562-ft high-pressure horizontal section of an unconventional, multizone gas well after experiencing difficulties using simple perforating guns and abrasive jetting, which involves perforating by sandblasting the casing. Attempts to run plugs and guns using a wireline tractor failed to reach total depth, leaving CT as the only option.

The operator used the CT real-time selective perforating and activation system to execute three zones, firing multiple shots from the same location in the same run. Gamma-ray logging tool measurements and the downhole CCL depth correlation tool were used to place the bottomhole assembly, activate the firing head, and confirm detonation within seconds. Use of the system resulted in significant time and cost savings for the operator.

Looking Ahead

Going forward, maximizing production from increasingly challenging reservoirs will only be possible through the use of advanced technologies. Ongoing improvements in CT, along with breakthroughs in real-time monitoring and data transmission, have had a significant impact on the well intervention market by enhancing the quality of information available for making job-critical decisions during interventions. Thus, operators become able to produce from wells that once would have been beyond the reach of intervention capabilities.

As the industry pushes into new frontiers, development and greater use of real-time downhole measurements will be essential to assuring production in challenging wells efficiently, cost-effectively, and safely.
