Advances in Delivery of Rolled Rings, Open-Die Forgings, and Complex Forged Parts

Specialty forgers manufacture custom, seamless rolled rings in a variety of materials and finishes in as little as 8 weeks.

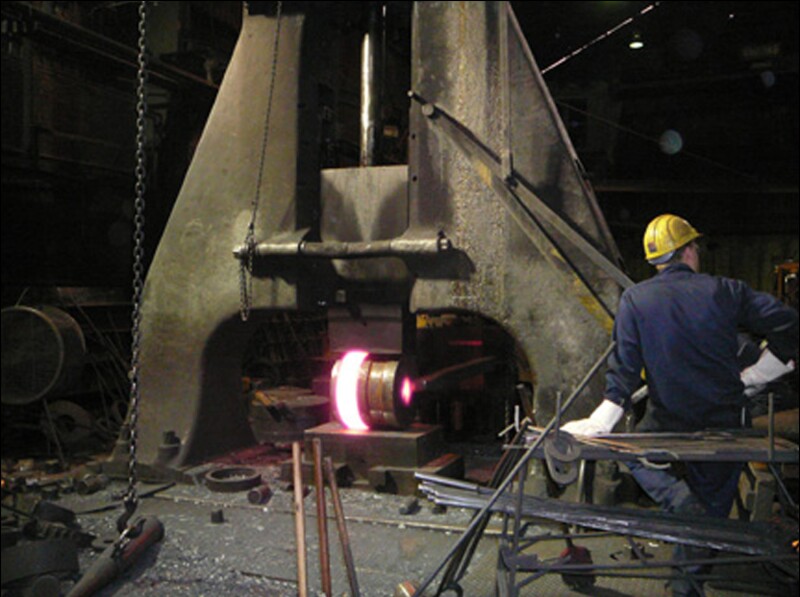

All Metals_forge2 (1).jpg
Source: All Metals & Forge Group

In the oil and gas industry, seamless rolled rings serve as critical components in wellhead equipment, drilling tools, valves, and connectors.

These precision-forged rings are often found in applications where it is critical to withstand the challenging conditions encountered in exploration, extraction, and refining processes. Seamless rolled rings have a greater lifespan than other products due to their strength and durability, and are less prone to cracking or warping, making the option ideal for critical components requiring high tensile strength. Depending on the metal and alloy, the rings are also resistant to thermal and chemical damage, which further extends longevity while reducing the need for maintenance, repair, and replacement.

Seamless rolled rings can be used in the manufacture of wellhead components to provide durability and reliability when extracting oil and gas from wells; in drilling operations to ensure components can withstand the forces and pressures involved; in oil and gas pipeline valves to contribute to system integrity and performance; and in pipeline connectors and couplings to contribute to the safe, efficient transport of product.

Obtaining large seamless rolled rings in a timely manner remains a significant challenge. Currently, it may take many months to receive the forged components after placing an order. This delay can have a severe impact on the production and maintenance schedules of industrial firms that depend on replacement parts.

Rings are typically provided with a rough surface finish, which necessitates the use of CNC machining to achieve the required level of smoothness. This poses a challenge for machine shops with a high workload, as allocating machine time for finishing inevitably leads to a decrease in production speed and an increase in costs, ultimately impacting the end-use cost or profitability.

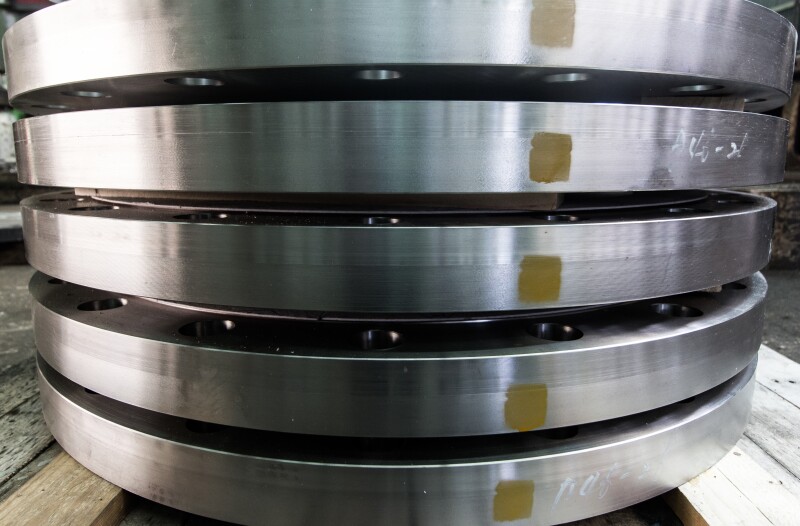

All Metals_forge (1).jpg
The oil and gas industry needs these forgings, which are critical component parts for gears, turbines, bearings, clutches, couplings, drives, flanges, valves, machines, and robotics.
Source: All Metals & Forge Group

Fortunately, oil and gas product manufacturers can rely on forging specialists capable of producing large, custom, seamless rolled rings, and contoured seamless rolled rings with the required surface finish in under 2 months. One example, All Metals & Forge Group, an ISO 9001:2015 and AS9100D manufacturer of custom and standard open-die forged parts and seamless rolled rings, can cost-effectively deliver these components with the required finish within 8–10 weeks.

The range of forged products includes rings, discs, hubs, blocks, shafts (including step shafts or with flanges), sleeves, gear blanks, cylinders, flats, hexes, rounds, plates, and custom shapes. Carbon steel, alloy steel, stainless steel, nickel, titanium, and aluminum are among the materials used for forging. These forgings meet rigorous industry specifications such as ASTM, AMS, AISI, ASME, Boeing, SAE, GE, DIN, ASME B 16.5, ASME B16.47, and API 6A.

The Benefits of Open-Die Forging

One of the chief advantages of open-die forging is the customization it offers in the seamless rolled ring manufacturing process.

According to Lewis Weiss, president of All Metals & Forge Group, open-die forging is ideal for providing large, custom parts. “We can produce seamless rolled rings or contoured rolled rings up to 200 in. in outside diameter, and custom forgings up to 40 ft long or 80,000 lb,” he said. The company has been manufacturing and selling open-die forgings and seamless rolled rings for more than 50 years.

While open-die forging is typically associated with larger, simpler-shaped parts like bars or blanks, the process enables the creation of “custom-designed” metal components.

According to Weiss, open-die forging facilitates the production of seamless rolled rings to exact specifications with optimized mechanical properties and structural integrity. He noted that the rings can be produced in a variety of alloys, sizes, and shapes specific to the requirements.

The forging of the rings is also cost effective since the process reduces material waste and manufacturing costs. Since the rings are constructed from a single metal piece using a specialized ring-rolling machine, there is no need for welding or assembly, saving time and labor. The seamless rolled rings are also more structurally sound because they create a circular grain flow in the material, following the shape of the ring, which increases strength and integrity, creating a refined grain structure. This can enhance the material's fatigue resistance and overall performance, resulting in a stronger, more durable final product compared to other methods of ring making, such as cutting from plate.

Near-Net-Shape Parts With Finer Surface Finish

Typically, when seamless rolled rings are forged, they are often left in an unprocessed state with a rough surface measured at approximately 500 RMS. As a result, significant CNC machining time is required to achieve a smoother surface for the finished machined part. This poses a challenge for machine shops as the allocation of machine time for finishing these rough parts directly affects production efficiency and delivery time to the client.

Tube Sheet of the heat exchanger, the water heater in the boiler as background at fabrication industrial
To optimize efficiency and reduce costs, rings can be produced for the oil and gas industry as near-net-shaped forged parts with more refined surface finishes.
KrerkkiatStocker/Getty Images/iStockphoto

To optimize efficiency and reduce costs, the company frequently provides near-net-shaped forged parts with more-refined surface finishes. “Typically, we provide a 250 RMS surface finish. We can even provide 125 RMS. We can also drill holes and do contour forgings as needed,” said Weiss.

“Some forge shops only offer a raw unmachined part. We produce a rough machine part, saving machine shop time and equipment wear and tear since we have already taken off the first rough cuts off the ring or forged parts,” he adds.

The company conducts ultrasonic testing at zero expense to the customer to guarantee the absence of internal cracks, pits, or voids.

This instills the utmost confidence in the quality of the parts, according to Tim Grady, the company's management consultant. “In many cases, [we] can offer ultrasonically tested parts that are more affordable than raw forged rings,” he said.

Streamlining Delivery

The procurement of forged seamless rolled rings usually takes a considerable amount of time, from 20 weeks to as much as a year, as there are long lead times in receiving the necessary steel from mills.

“When replacement parts are required, a delay of a year or more is not acceptable,” said Grady. “Even 20+ weeks is a serious issue.”

To expedite the process for its customers, the company has established partnerships within the industry, enabling it to deliver many custom forgings in a timeframe of 8–10 weeks. Furthermore, to minimize any potential production downtime for machine shops, the company strives to provide accurate quotes within 48 hours.

Positioning for the Future

The need to acquire seamless rolled rings will only increase in industries like oil and gas that require high-quality, custom-forged components that can safely withstand extreme forces with minimal repair or replacement. In these cases, working with an expert forger who can expedite the process will convey a significant advantage.
