Cloudy With a Chance of Methane

Scientists at the Sandia National Laboratories are using machine learning to find methane hydrates on the seafloor, using an approach similar to weather forecasting.

Methane hydrates burn. These gas hydrates are naturally occurring ice-like combinations of natural gas and water that have the potential to provide a resource of natural gas from the world’s oceans and polar regions.
Credit: J. Pinkston and L. Stern/USGS.<br/>

Methane hydrate, an ice-like material made of compressed natural gas, burns when lit and can be found in some regions of the seafloor and in Arctic permafrost.

Thought to be the world’s largest source of natural gas, methane hydrate is a potential fuel source, and, if it melts, methane, a potent greenhouse gas, is released into the atmosphere. For these reasons, knowing where methane hydrate might be located, and how much is likely there, is important.

A team of researchers from Sandia National Laboratories and the US Naval Research Laboratory have developed a new system to model the likelihood of finding methane hydrate and methane gas that was tested in a region of seafloor off the coast of North Carolina.

While methane hydrate deposits have been found in a variety of locations, little is known about how much methane hydrate exists on the seafloor and where. Collecting samples from the seafloor to find methane hydrate deposits is challenging. This is where Sandia’s computer modeling expertise comes in.

“This is the first time someone has been able to approach methane hydrate distribution in the same way we approach weather forecasting,” said Jennifer Frederick, a computational geoscientist and lead researcher on the project. “When you hear a weather forecast for a 60% chance of 2 in. of rain, you don’t necessarily expect exactly 2 in. You understand that there is uncertainty in that forecast, but it is still quite useful. In most places on the seafloor, we don’t have enough information to produce an exact answer, but we still need to know something about methane and its distribution. By using a probabilistic approach, similar to modern weather forecasting, we can provide useful answers.”

The new system combines Sandia’s longstanding expertise in probabilistic modeling with machine-learning algorithms from the Naval Research Laboratory. The system was tested and refined by modeling the area around Blake Ridge, a hill on the seafloor 90 to 230 miles southeast of North Carolina’s Outer Banks with known deposits of methane hydrate and methane gas.

The team shared their model for Blake Ridge and compared it with previous empirical data in a paper published on 14 March in the scientific journal Geochemistry, Geophysics, Geosystems.
“It will be interesting to see if our model is able to predict these regions of methane seeps on the seafloor,” Frederick said. “We'd like to see if we can predict the distribution of these methane seeps and whether they are consistent with the thermodynamic properties of methane-hydrate stability. When you see a seep, that means that there is a lot of gas beneath the seafloor. That will significantly impact how sound travels through the seafloor, and thus sonar. Also, these deposits could be a source of natural gas for energy production, will impact the ocean ecology and nutrient cycles, and, if that gas reaches the atmosphere, it will have climate change implications.”

Forecasting Methane by Combining Uncertainty Modeling With Machine Learning
The Naval Research Laboratory’s Global Predictive Seafloor Model provides site-specific details on seafloor properties, such as temperature, overall carbon concentration, and pressure. If data is missing for a certain region, the Naval Research Laboratory’s model uses advanced machine-learning algorithms to estimate the missing value based on information about another area that may be geographically distant but similar geologically.

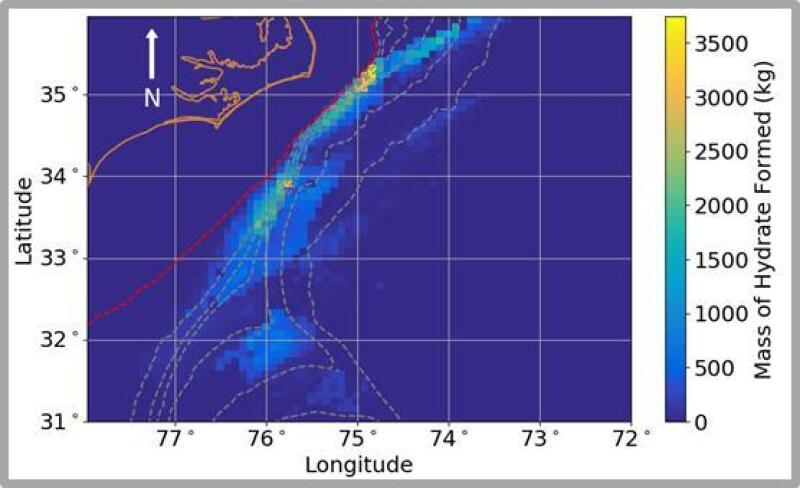

Using Sandia National Laboratories' expertise in probabilistic modeling and machine-learning algorithms from the US Naval Research Laboratory, researchers determined the probability of finding methane hydrate off the coast of North Carolina's Outer Banks.
Credit: William Eymold/Sandia National Laboratories.

The research team imported the data from the Naval Research Laboratory’s model into Sandia software that specializes in statistical sampling and analysis, called Dakota. Using Dakota, the team determined the most likely value for influential seafloor properties, as well as the natural variation for the values. Then, in a statistical manner, they inserted a value from this expected range for each property into PFLOTRAN, another software maintained and developed at Sandia. PFLOTRAN models how chemicals react and materials move underground or under the seafloor. The team conducted thousands of methane production simulations of the Blake Ridge region. All the software involved in the system is open source and will be available for other oceanographic researchers to use.

“One of the biggest things we found is that there is almost no formation of methane hydrates shallower than 500 m, which is to be expected given the temperature and pressure needed to form methane hydrate,” said William Eymold, a postdoctoral fellow at Sandia and primary author of the paper. Solid methane hydrate is known to form in low-temperature, high-pressure environments where molecules of methane are trapped within well-organized water molecules.

The team also found methane gas formed closer to shore. They were able to compare their model to methane hydrate values calculated by past studies and samples collected a few decades ago by the National Science Foundation’s Ocean Drilling Program, he said. For example, methane hydrate was detected in a seafloor sample collected from a hole drilled on Blake Ridge called Site 997.

“The fact that we predicted methane hydrate formation in similar amounts to past studies and observations really showed that the system appears to be working pretty well, and we will be able to apply it to other geographic locations that may have less data,” Eymold said.

Importance of Methane to the Navy and Next Steps
The location of methane hydrate deposits and methane gas near the seafloor is important to the Navy.

“Understanding how sound interacts with the seafloor is really important for any kind of naval operation,” Frederick said. “Methane gas affects the acoustics dramatically. Even if only 1% or 2% of the pore space in the seafloor sediment is filled with a gas bubble, the speed of sound decreases a hundredfold, or more. This is a very large effect, and, if you don’t account for it properly, then you’re not going to get precise acoustics.”

Frederick compared a submarine using sonar to the early arcade game Breakout, where a player moves a paddle horizontally in order to keep a ball bouncing to destroy a wall of bricks. In this analogy, the seafloor serves as the paddle to reflect or refract sound waves, or the ball, in order to get a complete view of obstacles in the ocean. If the paddle started to bounce the ball differently—or held on to the ball for varying lengths of times—depending on where the paddle was located, the game would become far more challenging.

So far, the team has used their system to create models of a region of the Norwegian Sea between Greenland and Norway and the shallow waters of the Arctic Ocean offshore of the North Slope of Alaska, two areas of interest to the Navy.

Frederick has also worked with a large team of international experts to assess the amount of methane and carbon dioxide stored in the shallow Arctic seafloor and how sensitive those deposits would be to rising temperatures.

The team has also created a much coarser model of the whole globe and has started looking at the mid-Atlantic, where methane gas was spotted bubbling out of the seafloor a few years ago.
