Completion Methods Analyzed in Two US Unconventional Plays

Openhole multistage (OHMS) systems are more cost-effective than the cemented casing plug-and-perf (CCPP) techniques for increasing production and reducing development costs.

Abstract image
Getty Images

An operator in the United States mid-continent region systematically analyzed different completion technologies and identified openhole multistage (OHMS) systems as a more cost-effective method than the cemented casing plug-and-perf (CCPP) techniques, used on previous wells, for increasing production and reducing development costs.

The operator holds one of the largest acreage positions in the region and in 2014 had operated or participated in approximately 170 horizontal wells. The operator’s development focused mainly on the Mississippian Lime play in northern Oklahoma and the Marmaton play in the Oklahoma and Texas Panhandles. Each carbonate resource play required a thorough evaluation to assess the unique geologic characteristics and thoughtful application of technology to unlock significant amounts of previously untapped oil and gas deposits. These plays are composed of a mix of unconventional shale, carbonate, and sandstone plays.

When developing its assets, the operator focused on creating a productive well, then on improving production and well cost. The steps taken by the operator included the following:

  • comparing different completion methods
  • analyzing completion costs
  • implementing new technology to improve completions
  • studying microseismic data to confirm assumptions and fine-tune completion design
  • conducting tracer analysis to ensure all stages were contributing to production

Lessons learned from each well were applied to future wells, and the operator realized further cost savings as it continued development of the region using OHMS completion systems. These cost reductions were achieved while preserving the estimated ultimate recovery (EUR) of the assets, increasing the economic viability of the operations.

Completion Methods Compared

The first objective was to determine which major completion function had the most effect on production and then on cost. Completion equipment is a major function of this aspect, and currently there are two main completion methods being used in the two plays: OHMS completion systems and CCPP methods.

The main difference between OHMS and CCPP systems is when the liner is picked up and run into the lateral section (Snyder and Seale 2011). In OHMS completion systems, the lateral section is left as uncemented, and fracture ports and isolation packers are run into the well as part of the liner. The well is stimulated in one continuous pumping operation, using size-specific actuation balls to open the fracture ports and provide isolation inside the liner between stages.

In CCPP completions, a liner is run into the wellbore and cemented in place. The cement provides annular isolation, while a series of bridge plugs provide isolation inside the liner between stages. Several trips are required in and out of the wellbore to shoot perforation clusters in the liner and set bridge plugs for each stage.

In comparing OHMS and CCPP completions, the operator focused on the Osage Mississippian Lime in Woods and Alfalfa counties. During the period of the analysis, the majority of the company’s operated and nonoperated wells were completed in these counties. Although each area is geologically different, using OHMS sliding-sleeve completion systems achieved the best economics in both counties.

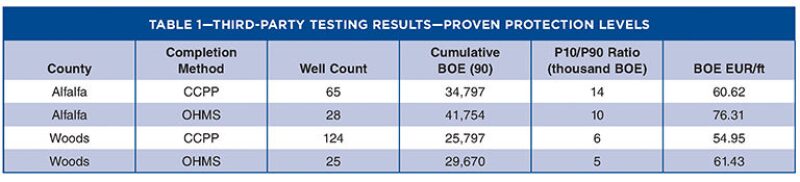

In a recent lookback, the Woods and Alfalfa counties OHMS and CCPP wells were compared using three benchmarks (Fig. 1 and Table 1).

  • Cumulative BOE at 90 days of production, which used a direct comparison of 90-day cumulative averages for the wells drilled in each county.
  • A P10/P90 probability distribution, which used a probability distribution of the EUR to determine the P10/P90 values for each county and completion method.
  • BOE EUR per lateral ft.

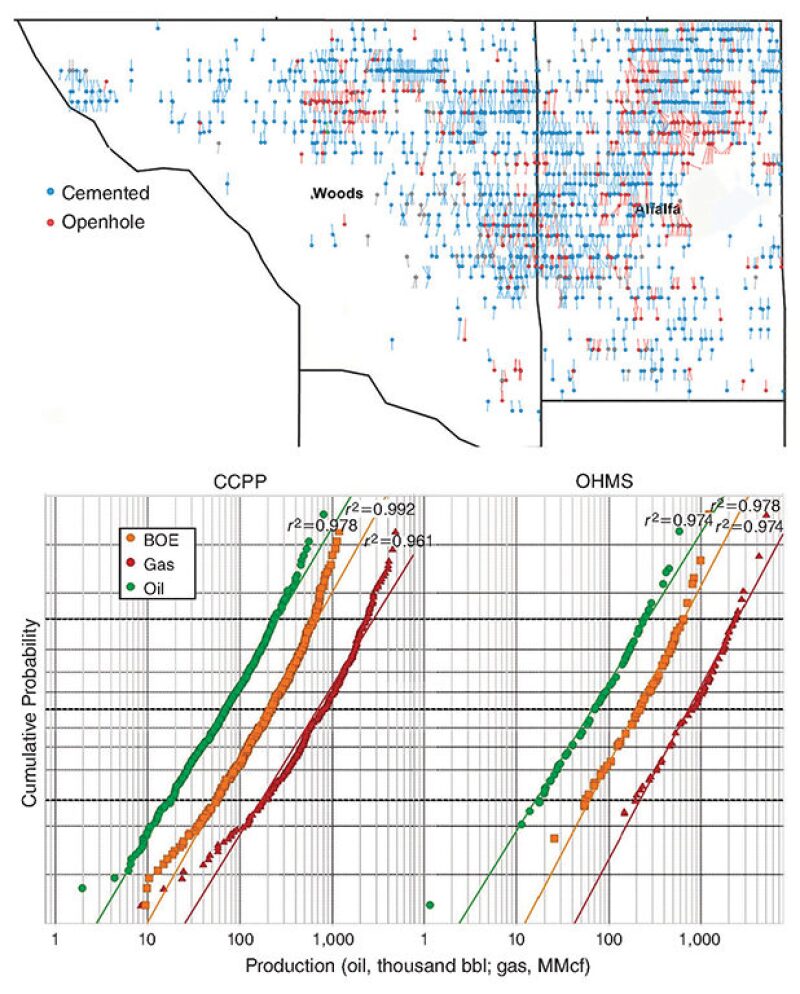

Fig. 1—(top) Comparison wells in Woods and Alfalfa counties are shown with (bottom) the P10/P90 cumulative probability distribution curves of CCPP and OHMS completions in the area. All images courtesy of Chaparral Energy



Completion Capex Analysis

After identifying that OHMS completion systems provided higher production, the operator conducted a cost analysis of its wells in all counties to identify the incremental increase to a well’s return on investment (ROI). OHMS capital expenditures (Capex) were below those of CCPP.

The next goal was to reduce completion Capex for the OHMS systems to further improve well economics. In the span of 2 years, from March 2013 to March 2015, the operator’s OHMS completion Capex was reduced by nearly 30%.

Further contributing to ROI, the operator experienced a 48% improvement in spud to first production cycle times in the Mississippi Lime during the last 2 years, a decrease from 79 to 41 days, thanks to the efficiency gains that have resulted from applied learning. This was because of the experience with the completion method, pad drilling, and the optimization of sliding-sleeve drillouts.

Radioactive Tracer Analysis

After establishing that OHMS completion systems achieved the same if not higher production and were more economical than competing completion methods, the operator continued moving forward with OHMS wells and began to adjust its completion design to further reduce costs. The operator used radioactive tracers to determine how many OHMS system fracturing ports opened to allow sand to enter the formation.

Fracture port operational issues, such as a port prematurely shifting open from differential pressure or erosion of a seat because of high fluid/proppant volumes and pump rates, can lead to missed stages and reduced production. High differential pressures across a fracturing ball could also lead to ball integrity issues and failures. Differential pressure in wells on vacuum can be deceivingly high, as the pressure downhole will be much different from the pressure at surface.

It is important to understand what can and should be adjusted with OHMS systems to allow the operator to pump the desired job. Seeing that a fracturing port has shifted open is verified with a signature visible on pressure charts. With this knowledge, it became clear that not all ports shifted open to allow stimulation, which was believed to have resulted in lost production. While ball seat signatures are indicative of the system functioning properly, some formations have unique challenges—low bottomhole pressure and natural fractures—that can make it difficult to obtain visible seat signatures.

The number of stages that were verified as open, using the pressure charts, was found to be an important factor called sleeve efficiency. After reviewing the tracer data, the operator saw an opportunity to increase the number of visible fracturing port shifts, and services were adjusted to improve completions. The same proppant tracing was undertaken to determine the difference after changing the OHMS system provider (Fig. 2). With changes in OHMS vendors, the operator was able to increase sleeve efficiency from 67% to an average exceeding 97%.

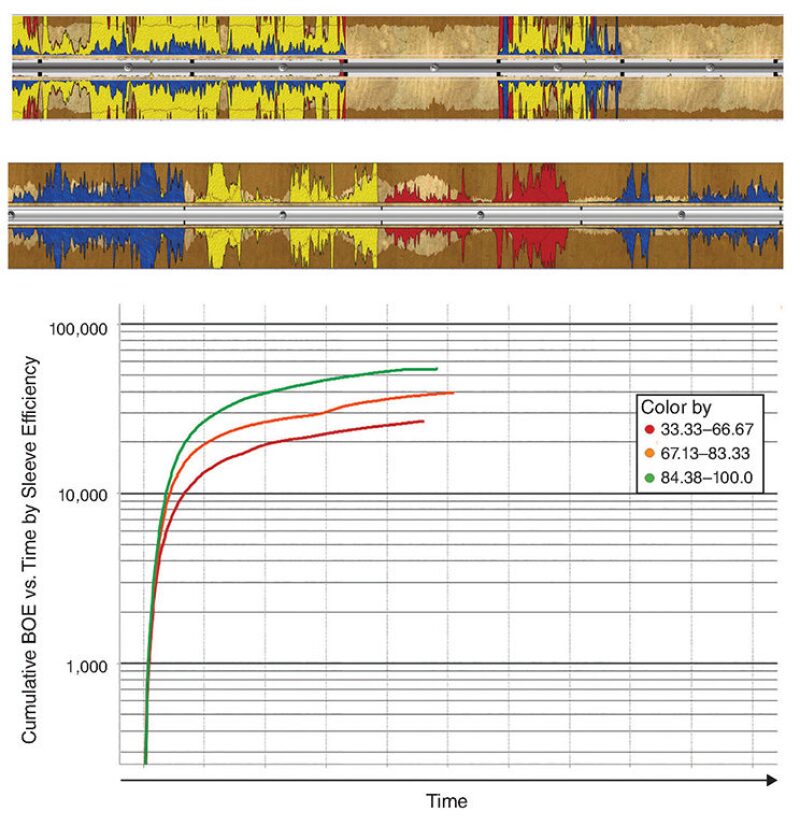

Fig. 2—(top) The combination of different color radioactive (RA) tracers in some stages and no RA tracer in other stages confirms that not all ports were open and stimulated when the original OHMS system provider’s services were used. (middle) One color per stage in the RA tracer results indicates solid zonal stage isolation with hydromechanical packers using a new OHMS system provider. (bottom) Wells with the highest sleeve-shifting efficiency (green line) achieve higher production than systems where sleeve shifting is unreliable.



The operator correlated sleeve-­shifting data with cumulative production to determine whether consistent sleeve- shift signatures resulted in better production. The chart shows the production results of the operator’s wells with the green series indicating the highest sleeve efficiency (from 84% to 100%), which resulted in increased production.

Microseismic Data Analysis

The operator recently conducted a microseismic study comparing CCPP and OHMS completions in the Meramec formation of Oklahoma from a dual-well north-south pad. This project was part of a larger ongoing study regarding the completion potential of the play in general. The goal was to compare the two completion methods and within each confirm the completion design assumptions and determine potential steps to improve each design. A full microseismic array was used, although the toe portion of the OHMS stimulation could not be adequately recorded. The CCPP well was treated in 18 stages (144 clusters) while the OHMS had 24 single stages. The target of the CCPP well was ~80 ft deeper (true vertical depth) than the OHMS well, but event distribution of both stimulations occurred similarly throughout the overall formation.

The microseismic study confirmed the fracture azimuth and influence from existing offset wells. The OHMS well also recorded more significant events, greater stimulated reservoir volume, greater fracture complexity index, greater fracture half-length, and greater proppant efficiency. The OHMS well is currently projected to outperform the CCPP well. The operator has continued to test this approach with four ­additional dual-well OHMS/CCPP pad tests and is satisfied with the comparative results thus far, although the pads are still relatively young. The Meramec play is still being developed predominantly with CCPP completions.

Summary

  • In the areas studied, completing wells with OHMS completion systems led to higher cumulative production.
  • OHMS completion systems reduced Capex compared with the CCPP completions in these areas.
  • While the OHMS method was slightly more productive, the system allowed for a more repeatable and efficient use of the operator’s Capex.
  • The P10/P90 comparison of the CCPP and OHMS wells was used to determine the consistency of production for each method.
  • Production was correlated with sleeve-shift signatures (sleeve efficiency). The more signatures witnessed, the higher the expected production and corresponding EUR.
  • Sleeve efficiency increased from an average of 66% to more than 97% with changes in OHMS system providers and OHMS system design.
  • Using microseismic data, the operator determined more seismic activity and a better fracture network with an OHMS completion than a CCPP completion.

Reference

Snyder, D. and Seale, R. A. 2011. Optimization of Completions in Unconventional Reservoirs for Ultimate Recovery—Case Studies. Presented at the SPE EUROPEC/EAGE Annual Conference and Exhibition, Vienna, Austria, 23–26 May. SPE-143066-MS.

The information in the article is based on paper SPE 176984, which was presented at the 2015 SPE Asia Pacific Unconventional Resources Conference and Exhibition in Brisbane, Australia, 9–11 November.
