Upgrade of Spar Topside With Comprehensive Sand-Management System

A deepwater field located offshore Sabah, east Malaysia, features a spar dry-tree unit (DTU) and multiple subsea-hub tiebacks to a floating production, storage, and offloading vessel (FPSO).

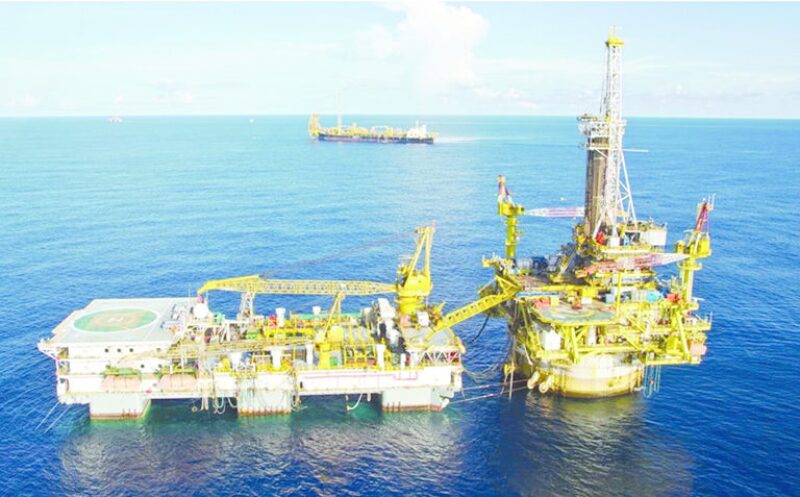

Fig. 1—Photograph of Kikeh field surface layout showing the Seadrill West Menang semitender contracted for well workover in the left foreground, the Murphy Kikeh spar DTU in the right foreground, and the Kikeh FPSO in the background.

A deepwater field located offshore Sabah, east Malaysia, features a spar dry-tree unit (DTU) and multiple subsea-hub tiebacks to a floating production, storage, and offloading vessel (FPSO). In early 2011, several of the wells began producing solid fines that affected production. It was decided that a long-term solution would be to recomplete the affected wells with enhanced downhole sand control on the lower completions. The short-term solution consisted of installing a topside sand-management system on the spar and sand-sparging equipment on the FPSO separators.

Project Overview

The Kikeh field is located 120 km northwest of the island of Labuan at approximately 1300-m water depth. The field was developed using a standalone facility, with hydrocarbons being produced from both subsea and dry-tree wells from a spar/DTU facility.

×
